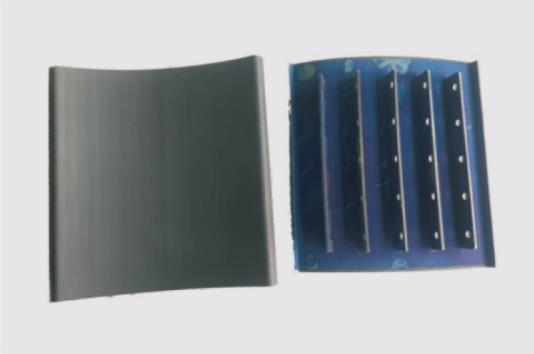

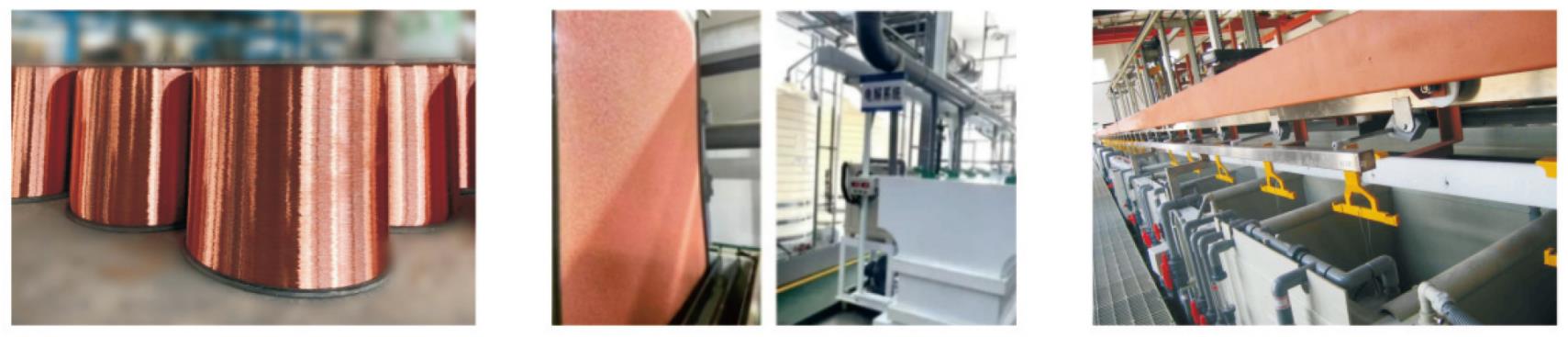

Metal Foil Making, Electrolytic Copper Foil, Steel Plate Galvanizing, Cathodic Protection, Electrolytic Synthesis of Organics, Chromium Plating, Etching Liquid Regeneration and Copper Recycling, Swirl Electrolysis, Hydrometallurgy, HHO Generator, Wastewater Treatment and other industries.
In the field of electroplating applications, the required coating metal dissolves in the electrolyte, and the plated metal substrate serves as the negative electrode, while the anode serves as the positive electrode, forming a complete current transmission cycle. Oxygen is released on the anode surface during electroplating.

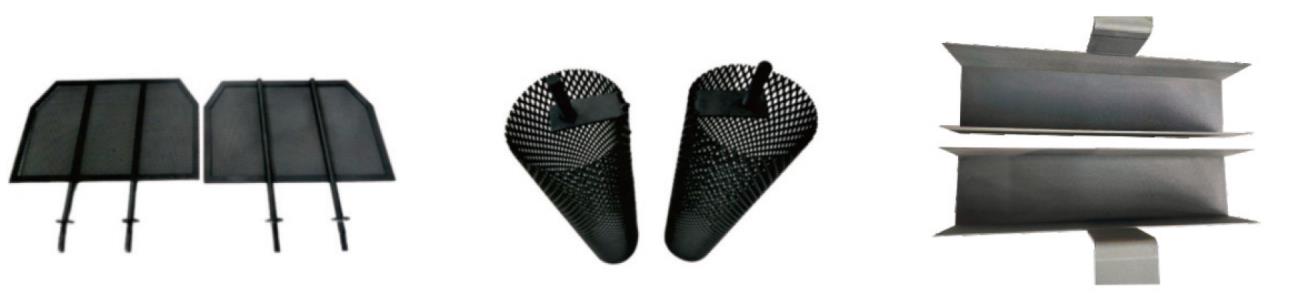

Electroplating of zinc, precious metal electroplating (including gold plating, silver plating, palladium plating, etc.); hard chromium electroplating, nickel electroplating; tin electroplating (tinning of steel plates).
During the etching process of electronic circuit boards (PCB), the copper content in the etching solution continuously increases. To achieve the best recovery effect, each liter of etching solution must contain 120 to 180 grams of dissolved copper, and the corresponding ammonium salt (NH4Cl) and ammonia (NH3). The etching solution regeneration system is acidic and alkaline, and the two major systems can be divided into the indirect method and direct electrolysis method. A large amount of unused etching solution that originally needed to be discharged can be restored and regenerated into reusable regenerated etching solution, which reduces production costs, reduces the discharge of production waste liquid, and can extract high-purity electrolytic metallic copper.
| SOLUTION TYPE | ANODE TYPE |
|---|---|
| ALKALINE LIQUID | IRIDIUM TANTALUM |
| ACIDIC LIQUID | RUTHENIUM IRIDIUM |
PCB industry production process, produce a large number of etching solution (containing different concentrations of copper nitrate, copper sulfate)
Current density: (200–400)A/m²
Service life: 12–24 months

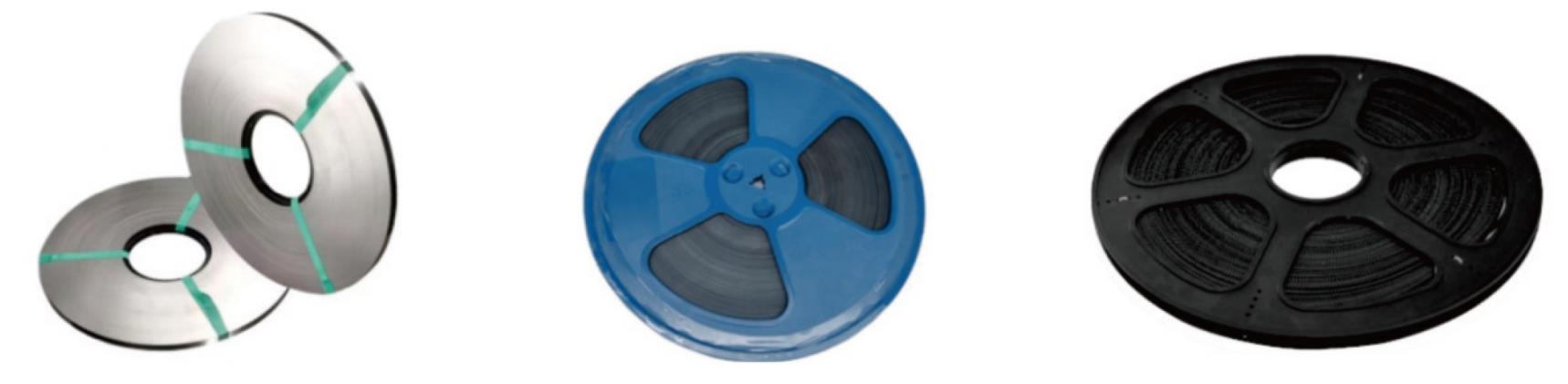

Application: Protection of ships and equipment in seawater environments.
Thermal expansion coefficient: 8.7×10⁻⁶/k
Resistivity: 0.000056Ω/cm
Thermal conductivity: 15.6W/(m*k)
Coating system: Titanium coated with iridium (NACE TM0188–2008)
Common current: 17mA/m² — 50Y
34mA/m² — 25Y
42mA/m² — 20Y
Application fields: steel columns in docks, deep-sea platform, small tank farm, regional cathodic protection.
| Outer Diameter (OD/mm) | Length (L/mm) | Wall Thickness (WT/mm) | Weight (KG) | Surface Area (㎡) | Current Output (A/m) | Service Life (Y) |
|---|---|---|---|---|---|---|
| 19 | 1200 | 1 | 0.3 | 0.072 | 7.2 | 20 |
| 25 | 500 | 1.5 | 0.25 | 0.039 | 4 | 20 |
| 25 | 1000 | 1.5 | 0.5 | 0.079 | 8 | 20 |
| 25 | 1500 | 1.5 | 0.75 | 0.118 | 12 | 20 |
| 32 | 1000 | 2 | 1 | 0.121 | 12 | 20 |
Soil environment: Titanium coated with Iridium (NACE TM0188–2008)
Seawater environment: Titanium coated with Ruthenium–Iridium (NACE TM0188–2008)
